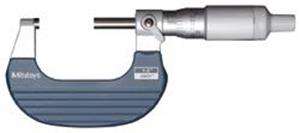

1-2 Inch, .0001 Inch Mechanical Outside Micrometer, Smooth Action, Ratchet Thimble, With Standard

  • Item Code: 102-718
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ratchet function works both from the thimble and the speeder, allowing easy one-handed operation.
    • Clearly audible ratchet operation for reassurance that measurement is being performed at constant, preset force.

Tech Specs

Back To Top
Thimble Diameter Measurement 19mm
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Finish Satin Chrome
Parallelism .00008 In
Clutch Ratchet Thimble
Primary Measuring Range Lower - Inch 1 In
Range 1 - 2 In
Contact Point Flatness .000024 In
Accuracy ±.0001 In
Case Part Number 475001
Case Material Plastic Case
Individual or Set Individual
Primary Measuring Range Upper - Inch 2 In
Resolution or Graduation .0001 In
Spindle Face Flat
Contact Point Diameter 6.35mm
