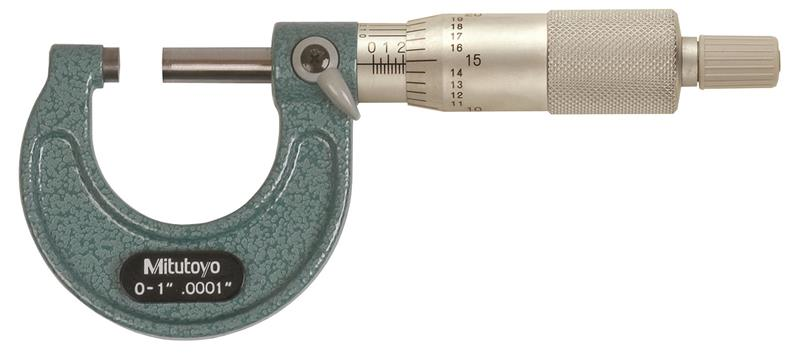

0-1 Inch, .0001 Inch Mechanical Outside Micrometer, Hammertone Baked Enamel, Ratchet Stop

  • Item Code: 103-131
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ratchet Stop for exact repetitive readings.
    • Hammertone, baked-enamel-finished frame

Tech Specs

Back To Top
Accuracy ±.0001 In
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Case Part Number 475003
Primary Measuring Range Upper - Inch 1 In
Brand Mitutoyo
Finish Enamel
Individual or Set Individual
Parallelism [.00008+.00004(L/4)]In
Contact Point Diameter 6.35mm
Contact Point Flatness .000024 In
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Resolution or Graduation .0001 In
Spindle Face Flat
