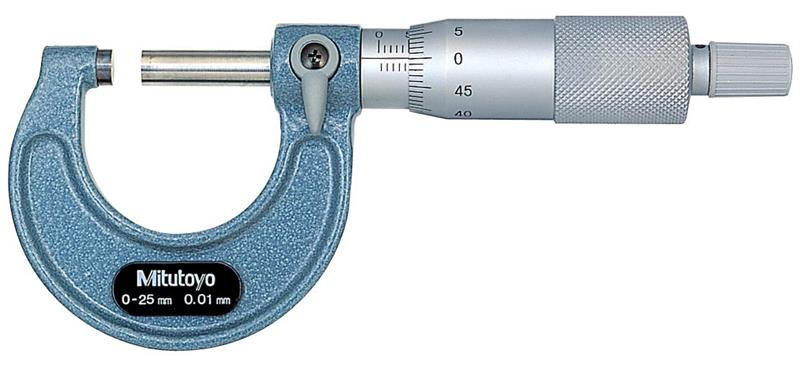

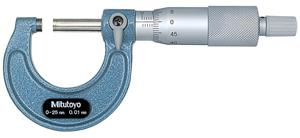

0mm-25mm Measuring Range, 0.01mm Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-137
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Case Part Number 475003
Contact Point Flatness 0.6µm
Clutch Ratchet Stop
Primary Measuring Range Lower - Metric 0mm
Range 0 - 25mm
Thimble Diameter Measurement 18mm
Accuracy ±2µm
Brand Mitutoyo
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Finish Enamel
Primary (Outside Diameter) Contact Point Material Carbide
Individual or Set Individual
Case Material Plastic Case
Spindle Face Flat
Parallelism (2+R/100)µm
Primary Measuring Range Upper - Metric 25mm
Resolution or Graduation 0.01mm
Spindle Lock Y
