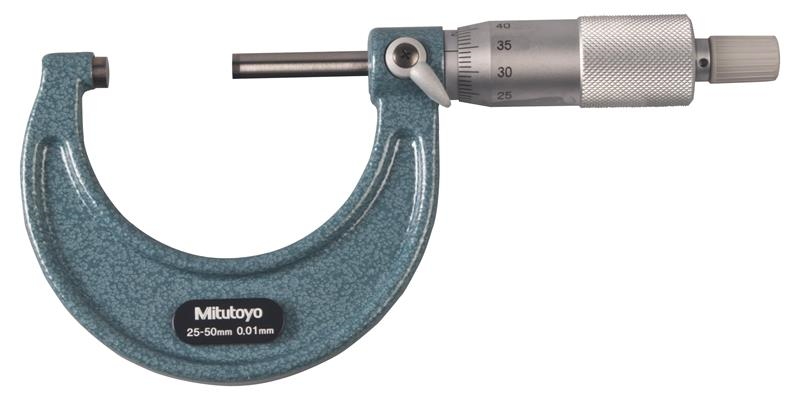

25mm-50mm Measuring Range, 0.01mm Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-138
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ratchet Stop for exact repetitive readings.
    • Hammertone, baked-enamel-finished frame

Tech Specs

Back To Top
Range 25 - 50mm
Case Material Plastic Case
Case Part Number 475003
Parallelism (2+R/100)µm
Primary Measuring Range Upper - Metric 50mm
Spindle Face Flat
Brand Mitutoyo
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
Accuracy ±2µm
Finish Enamel
Individual or Set Individual
Primary Measuring Range Lower - Metric 25mm
Resolution or Graduation 0.01mm
Spindle Lock Y
Contact Point Diameter 6.35mm
Clutch Ratchet Stop
Contact Point Flatness 0.6µm
Primary (Outside Diameter) Contact Point Material Carbide
