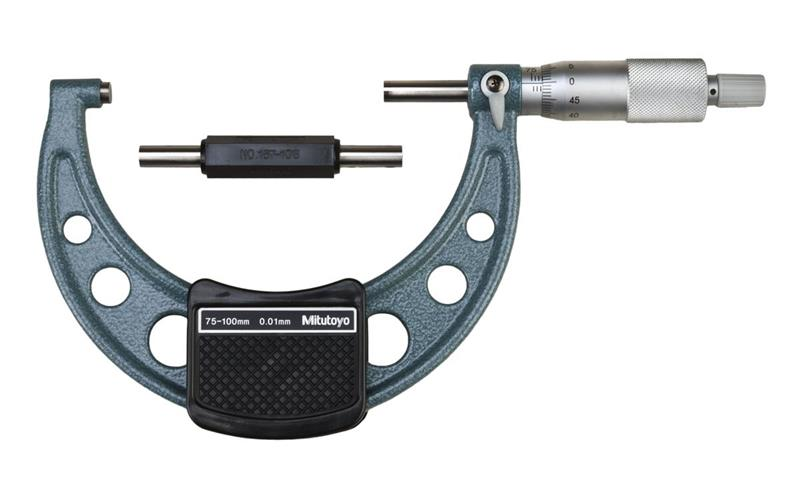

75mm-100mm Measuring Range, 0.01mm Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-140-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ratchet Stop for exact repetitive readings.
    • Hammertone, baked-enamel-finished frame

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 75mm
Individual or Set Individual
Contact Point Flatness 0.6µm
Finish Enamel
Parallelism (2+R/100)µm
Spindle Lock Y
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Case Part Number 475003
Spindle Face Flat
Accuracy ±2µm
Clutch Ratchet Stop
Primary Measuring Range Upper - Metric 100mm
Resolution or Graduation 0.01mm
Range 75 - 100mm
Contact Point Diameter 6.35mm
Thimble Diameter Measurement 18mm
