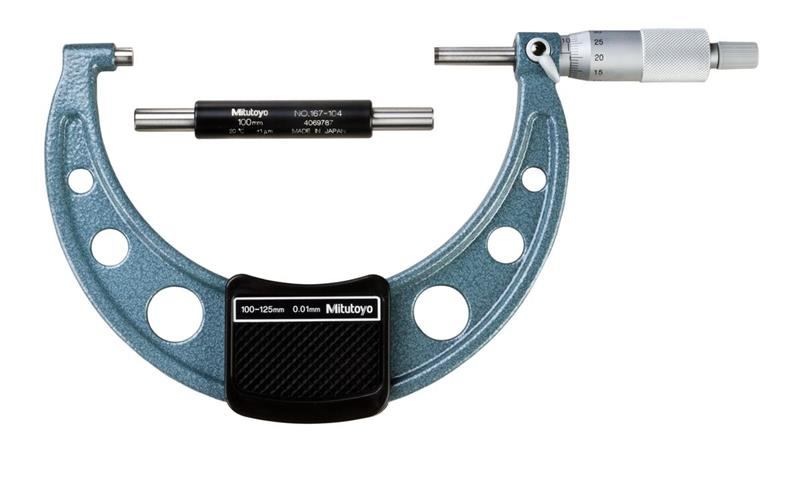

100mm-125mm Measuring Range, 0.01mm Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-141-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ratchet Stop for exact repetitive readings.
    • Hammertone, baked-enamel-finished frame

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 100mm
Primary Measuring Range Upper - Metric 1250mm
Range 100 - 125mm
Resolution or Graduation 0.01mm
Thimble Diameter Measurement 18mm
Accuracy ±2µm
Brand Mitutoyo
Case Part Number 475003
Finish Enamel
Parallelism (2+R/100)µm
Contact Point Diameter 6.35mm
Spindle Lock Y
Contact Point Flatness 0.6µm
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Individual or Set Individual
Case Material Plastic Case
Clutch Ratchet Stop
Spindle Face Flat
