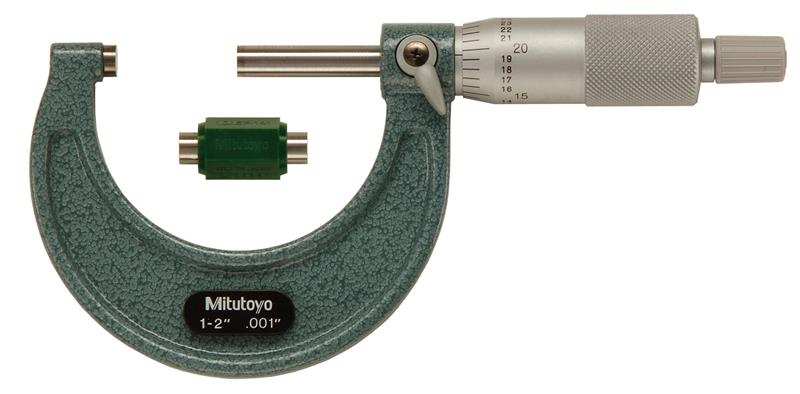

1-2 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-178
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Case Material Plastic Case
Case Part Number 475003
Primary Measuring Range Upper - Inch 2 In
Spindle Face Flat
Finish Enamel
Spindle Lock Y
Individual or Set Individual
Parallelism [.00008+.00004(L/4)]In
Resolution or Graduation .001 In
Contact Point Flatness .000024 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 1 In
Range 1 - 2 In
Accuracy ±.0001 In
Clutch Ratchet Stop
Contact Point Diameter 6.35mm
Thimble Diameter Measurement 18mm
