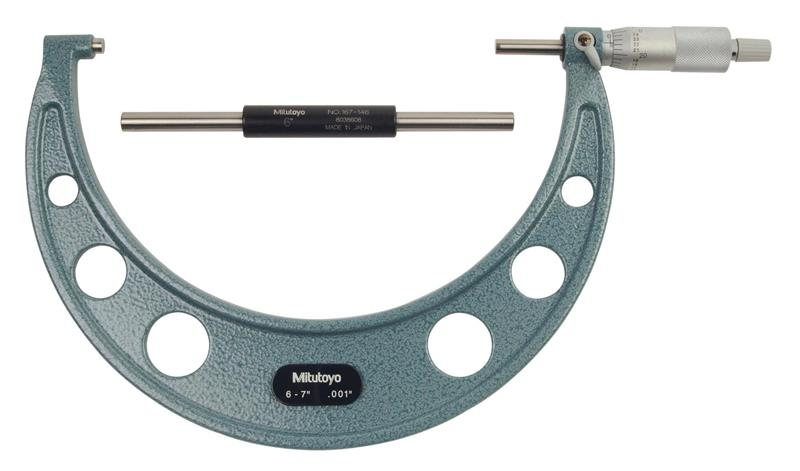

6-7 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-183
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Range 6 - 7 In
Contact Point Flatness .000024 In
Finish Enamel
Case Material Plastic Case
Clutch Ratchet Stop
Spindle Face Flat
Contact Point Diameter 6.35mm
Primary Measuring Range Upper - Inch 7 In
Spindle Lock Y
Thimble Diameter Measurement 18mm
Case Part Number 475005
Mechanical or Digital Mechanical
Primary Measuring Range Lower - Inch 6 In
Primary (Outside Diameter) Contact Point Material Carbide
Accuracy ±.0002 In
Brand Mitutoyo
Parallelism [.00008+.00004(L/4)]In
Resolution or Graduation .001 In
Individual or Set Individual
