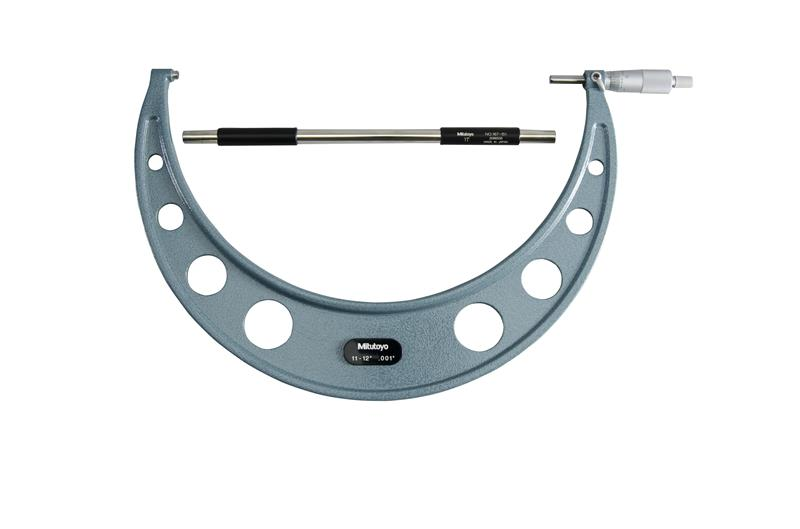

11-12 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-188
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch 11 In
Accuracy ±.00025 In
Contact Point Flatness .000024 In
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Finish Enamel
Case Part Number 475005
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Contact Point Diameter 6.35mm
Spindle Lock Y
Individual or Set Individual
Parallelism [.00008+.00004(L/4)]In
Resolution or Graduation .001 In
Case Material Plastic Case
Clutch Ratchet Stop
Range 11 - 12 In
Spindle Face Flat
Primary Measuring Range Upper - Inch 12 In
