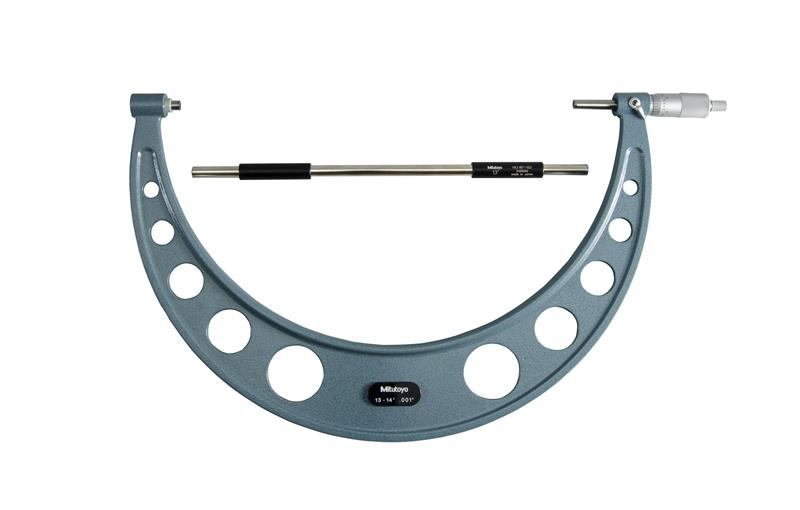

13-14 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-190
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch 13 In
Primary Measuring Range Upper - Inch 14 In
Range 13 - 14 In
Brand Mitutoyo
Finish Enamel
Spindle Lock Y
Accuracy ±.0003 In
Case Part Number 475005
Primary (Outside Diameter) Contact Point Material Carbide
Clutch Ratchet Stop
Contact Point Flatness .000024 In
Case Material Plastic Case
Individual or Set Individual
Spindle Face Flat
Parallelism [.00008+.00004(L/4)]In
Resolution or Graduation .001 In
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
