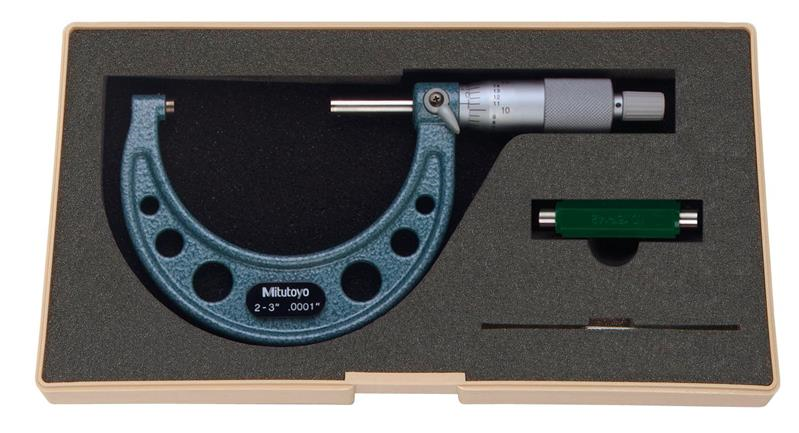

2-3 Inch Measuring Range, 0.0001 Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-217
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 2 In
Finish Enamel
Spindle Lock Y
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Case Part Number 475003
Resolution or Graduation .0001 In
Spindle Face Flat
Contact Point Flatness .000024 In
Range 2 - 3 In
Individual or Set Individual
Parallelism [.00008+.00004(L/4)]In
Contact Point Diameter 6.35mm
Primary Measuring Range Upper - Inch 3 In
Thimble Diameter Measurement 18mm
Accuracy ±.0001 In
