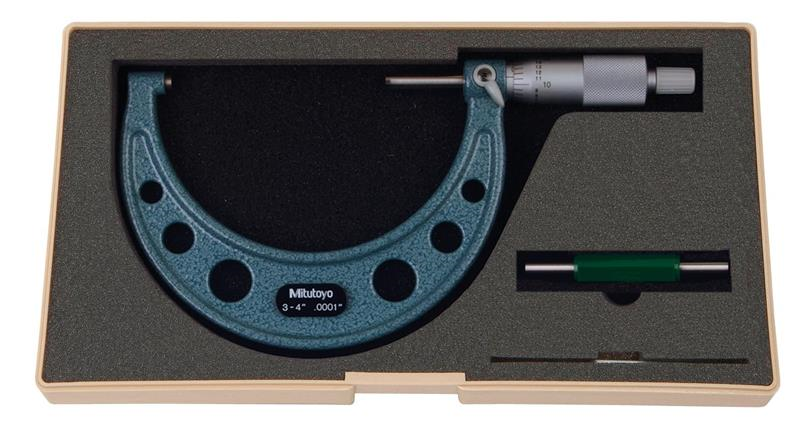

3-4 Inch Measuring Range, 0.0001 Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-218
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Brand Mitutoyo
Clutch Ratchet Stop
Mechanical or Digital Mechanical
Primary Measuring Range Upper - Inch 4 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 3 In
Contact Point Flatness .000024 In
Parallelism [.00008+.00004(L/4)]In
Range 3 - 4 In
Thimble Diameter Measurement 18mm
Accuracy ±.00015 In
Case Part Number 475004
Contact Point Diameter 6.35mm
Spindle Face Flat
Case Material Plastic Case
Resolution or Graduation .0001 In
Finish Enamel
Individual or Set Individual
Spindle Lock Y
