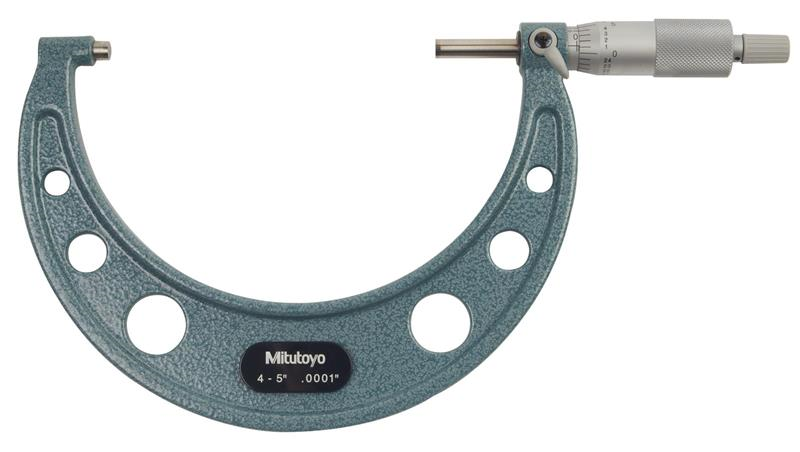

4-5 Inch Measuring Range, 0.0001 Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-219
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Case Part Number 475005
Accuracy ±.00015 In
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Brand Mitutoyo
Finish Enamel
Primary Measuring Range Lower - Inch 4 In
Spindle Lock Y
Contact Point Diameter 6.35mm
Individual or Set Individual
Parallelism [.00008+.00004(L/4)]In
Primary Measuring Range Upper - Inch 5 In
Range 4 - 5 In
Contact Point Flatness .000024 In
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Clutch Ratchet Stop
Resolution or Graduation .0001 In
Spindle Face Flat
