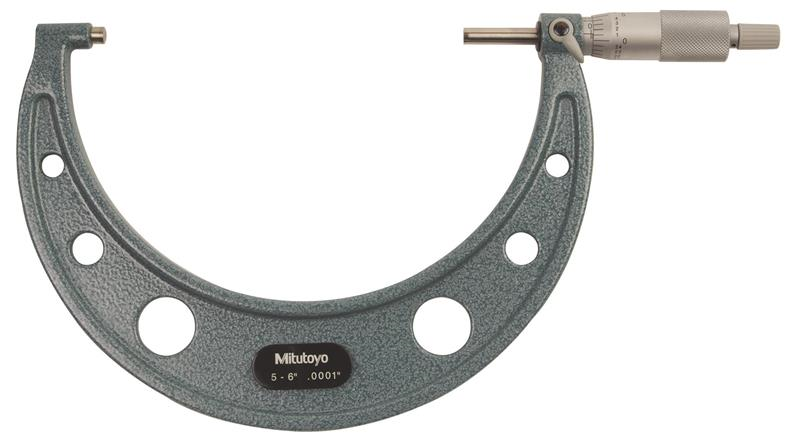

5-6 Inch Measuring Range, 0.0001 Graduation, Ratchet Thimble, Carbide Face, Outside Micrometer

  • Item Code: 103-220
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Case Part Number 475006
Range 5 - 6 In
Spindle Lock Y
Brand Mitutoyo
Mechanical or Digital Mechanical
Parallelism [.00008+.00004(L/4)]In
Thimble Diameter Measurement 18mm
Contact Point Diameter 6.35mm
Finish Enamel
Primary Measuring Range Upper - Inch 6 In
Individual or Set Individual
Primary Measuring Range Lower - Inch 5 In
Accuracy ±.00015 In
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Clutch Ratchet Stop
Resolution or Graduation .0001 In
Spindle Face Flat
