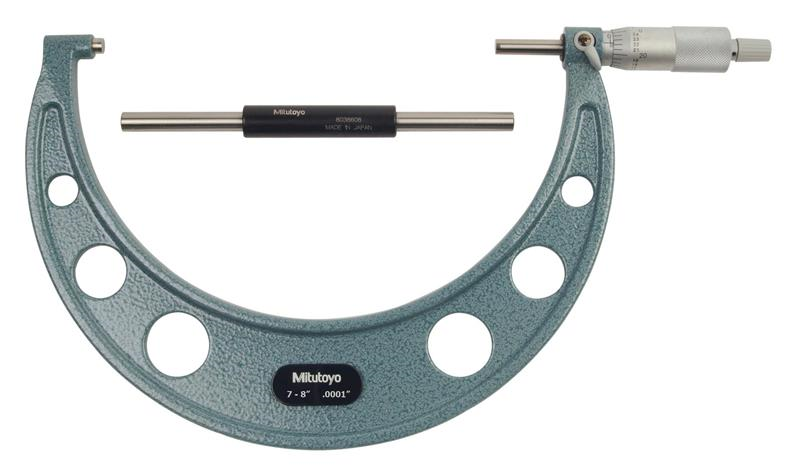

7-8 Inch, .0001 Inch Mechanical Outside Micrometer, Hammertone Baked Enamel, Ratchet Stop, With Standard

  • Item Code: 103-222
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch 7 In
Primary Measuring Range Upper - Inch 8 In
Individual or Set Individual
Brand Mitutoyo
Case Part Number 04MZA056
Mechanical or Digital Mechanical
Parallelism [.00008+.00004(L/4)]In
Thimble Diameter Measurement 18mm
Spindle Face Flat
Contact Point Diameter 6.35mm
Finish Enamel
Accuracy ±.0002 In
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Range 7 - 8 In
Spindle Lock Y
Case Material Plastic Case
Clutch Ratchet Stop
Resolution or Graduation .0001 In
