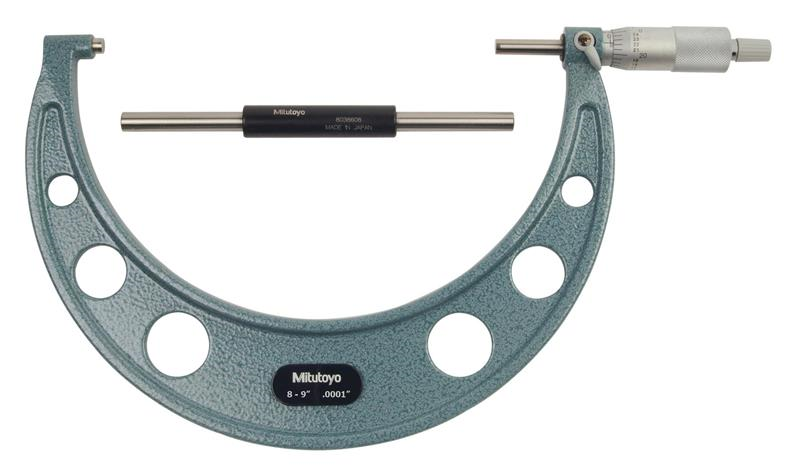

8-9 Inch, .0001 Inch Mechanical Outside Micrometer, Hammertone Baked Enamel, Ratchet Stop, With Standard

  • Item Code: 103-223
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Range 8 - 9 In
Individual or Set Individual
Parallelism [.00008+.00004(L/4)]In
Primary Measuring Range Upper - Inch 9 In
Case Part Number 04MZA056
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Resolution or Graduation .0001 In
Spindle Face Flat
Brand Mitutoyo
Clutch Ratchet Stop
Accuracy ±.0002 In
Contact Point Diameter 6.35mm
Primary Measuring Range Lower - Inch 8 In
Spindle Lock Y
Contact Point Flatness .000024 In
Finish Enamel
Primary (Outside Diameter) Contact Point Material Carbide
