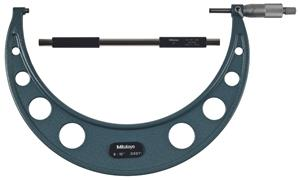

9-10 Inch, .0001 Inch Mechanical Outside Micrometer, Hammertone Baked Enamel, Ratchet Stop, With Standard

  • Item Code: 103-224
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Case Part Number 475578
Primary Measuring Range Upper - Inch 10 In
Contact Point Diameter 6.35mm
Contact Point Flatness .000024 In
Finish Enamel
Thimble Diameter Measurement 18mm
Range 9 - 10 In
Spindle Lock Y
Accuracy ±.00025 In
Brand Mitutoyo
Individual or Set Individual
Mechanical or Digital Mechanical
Parallelism [.00008+.00004(L/4)]In
Case Material Wooden Case
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 9 In
Resolution or Graduation .0001 In
Spindle Face Flat
Primary (Outside Diameter) Contact Point Material Carbide
