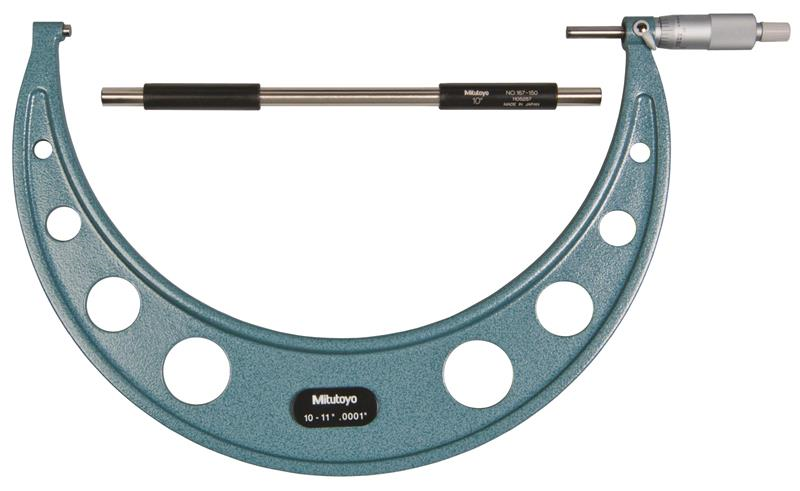

10-11 Inch, .0001 Inch Mechanical Outside Micrometer, Hammertone Baked Enamel, Ratchet Stop, With Standard

  • Item Code: 103-225
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Resolution or Graduation .0001 In
Spindle Face Flat
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Brand Mitutoyo
Primary Measuring Range Upper - Inch 11 In
Range 10 - 11 In
Individual or Set Individual
Parallelism [.00008+.00004(L/4)]In
Primary Measuring Range Lower - Inch 10 In
Case Material Wooden Case
Clutch Ratchet Stop
Finish Enamel
Spindle Lock Y
Accuracy ±.00025 In
Case Part Number 475579
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
