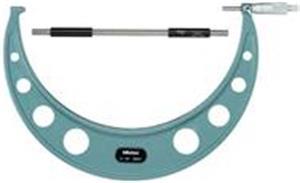

11-12 Inch, .0001 Inch Mechanical Outside Micrometer, Hammertone Baked Enamel, Ratchet Stop, With Standard

  • Item Code: 103-226
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Case Part Number 475579
Resolution or Graduation .0001 In
Spindle Face Flat
Individual or Set Individual
Case Material Wooden Case
Clutch Ratchet Stop
Accuracy ±.00025 In
Contact Point Flatness .000024 In
Parallelism [.00008+.00004(L/4)]In
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 11 In
Primary Measuring Range Upper - Inch 12 In
Finish Enamel
Spindle Lock Y
Contact Point Diameter 6.35mm
Thimble Diameter Measurement 18mm
Range 11 - 12 In
