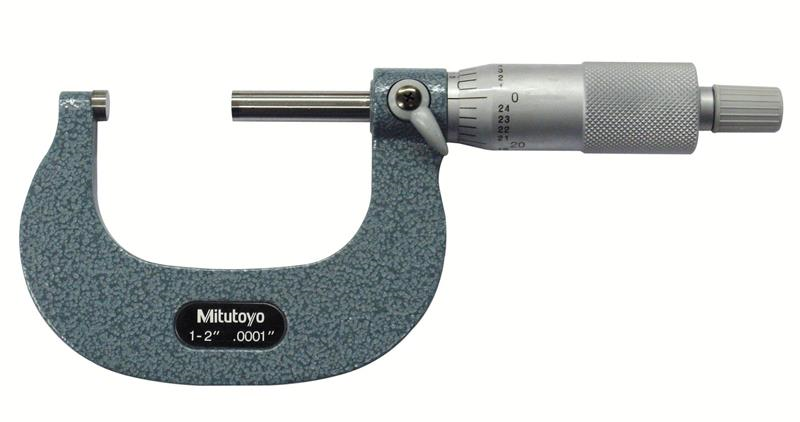

1-2 Inch, .0001 Inch Mechanical Outside Micrometer, Hammertone Baked Enamel, Ratchet Stop, Angle Frame

  • Item Code: 103-262
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Contact Point Diameter 6.35mm
Finish Enamel
Spindle Lock Y
Case Material Plastic Case
Spindle Face Flat
Brand Mitutoyo
Mechanical or Digital Mechanical
Parallelism [.00008+.00004(L/4)]In
Thimble Diameter Measurement 18mm
Accuracy ±.0001 In
Individual or Set Individual
Clutch Ratchet Stop
Primary Measuring Range Upper - Inch 2 In
Resolution or Graduation .0001 In
Case Part Number 475002
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 1 In
Range 1 - 2 In
