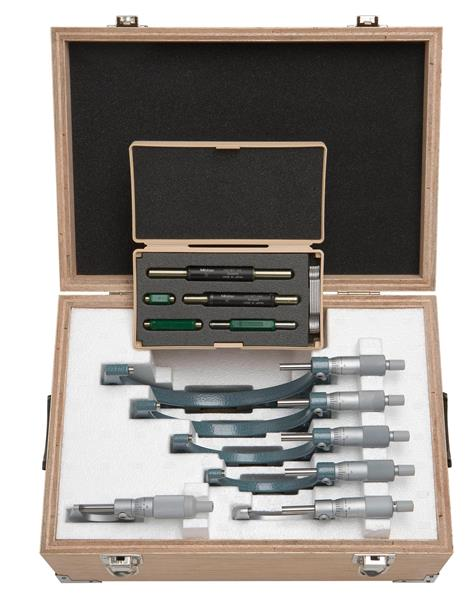

0-6 Inch, .001 Inch Mechanical Outside Micrometer Set, Hammertone Baked Enamel, 6 gages, with 5 standards

  • Item Code: 103-904-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Contact Point Diameter 6.35mm
Individual or Set Set
Accuracy ±.0001 In to ±.00015
Resolution or Graduation .001 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Parallelism [.00008+.00004(L/4)]In
Thimble Diameter Measurement 18mm
Pieces Per Set 6
Range 0 - 6 In
Spindle Face Flat
Case Part Number 475585
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Clutch Varied
Finish Enamel
Primary Measuring Range Upper - Inch 6 In
Case Material Wooden Case
Primary Measuring Range Lower - Inch 0 In
Spindle Lock Y
