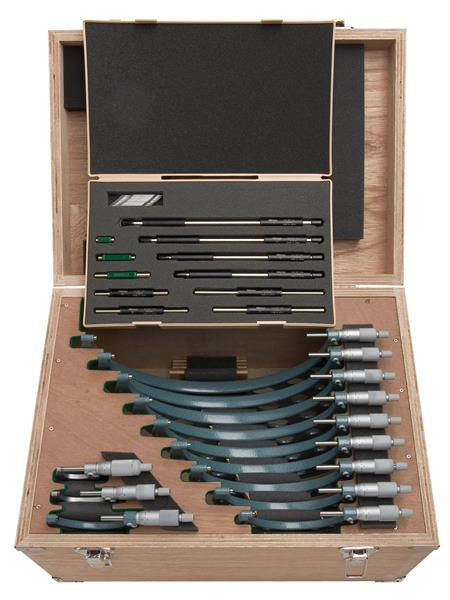

0-12 Inch, .001 Inch Mechanical Outside Micrometer Set, Hammertone Baked Enamel, 12 gages, with 11 standards

  • Item Code: 103-905-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Supplied in a fitted plastic case.
    • Comes with 6 Micrometer Standards

Tech Specs

Back To Top
Clutch Varied
Parallelism [.00008+.00004(L/4)]In
Resolution or Graduation .001 In
Finish Enamel
Spindle Lock Y
Brand Mitutoyo
Case Part Number 475585
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch 12 In
Range 0 - 12 In
Spindle Face Flat
Case Material Wooden Case
Pieces Per Set 12
Primary Measuring Range Lower - Inch 0 In
Accuracy ±.0001 In to ±.00015
Contact Point Flatness .000024 In
Individual or Set Set
Contact Point Diameter 6.35mm
Thimble Diameter Measurement 18mm
