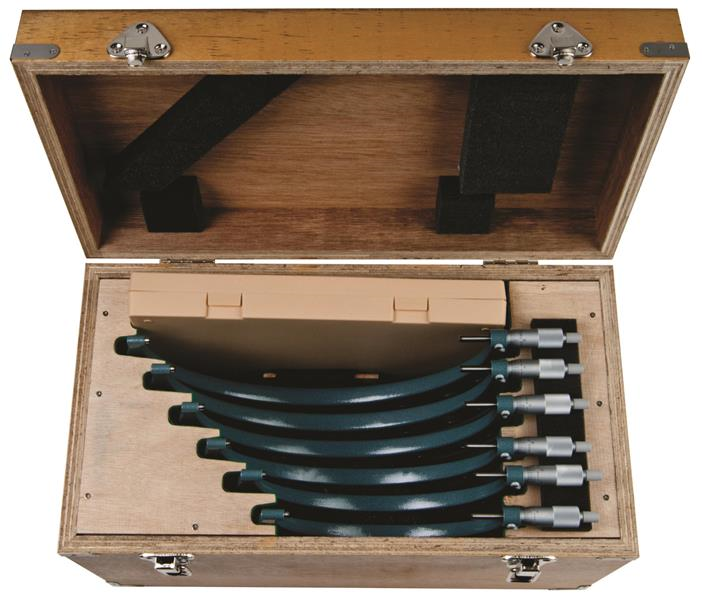

6-12 Inch, .001 Inch Mechanical Outside Micrometer Set, Hammertone Baked Enamel, 6 gages, with 6 standards

  • Item Code: 103-906
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Supplied in a fitted plastic case.
    • Comes with 5 Micrometer Standards

Tech Specs

Back To Top
Contact Point Flatness .000024 In
Range 6 - 12 In
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Clutch Varied
Finish Enamel
Spindle Lock Y
Contact Point Diameter 6.35mm
Case Part Number 475585
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Accuracy ±.0001 In to ±.00015
Parallelism [.00008+.00004(L/4)]In
Resolution or Graduation .001 In
Primary Measuring Range Lower - Inch 6 In
Primary Measuring Range Upper - Inch 12 In
Case Material Wooden Case
Individual or Set Set
Pieces Per Set 6
Spindle Face Flat
