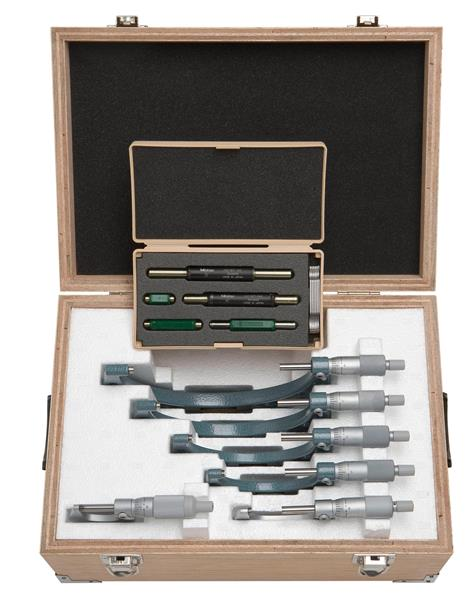

0-6 Inch, .0001 Inch Mechanical Outside Micrometer Set, Hammertone Baked Enamel, 6 gages, with 5 standards

  • Item Code: 103-907-40
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Supplied in a fitted plastic case.
    • Comes with 5 Micrometer Standards

Tech Specs

Back To Top
Accuracy ±.0001 In to ±.00015
Case Part Number 475585
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 6 In
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Clutch Varied
Finish Enamel
Case Material Wooden Case
Individual or Set Set
Pieces Per Set 6
Range 0 - 6 In
Resolution or Graduation .0001 In
Spindle Face Flat
Contact Point Diameter 6.35mm
Spindle Lock Y
Thimble Diameter Measurement 18mm
Contact Point Flatness .000024 In
Brand Mitutoyo
Parallelism [.00008+.00004(L/4)]In
