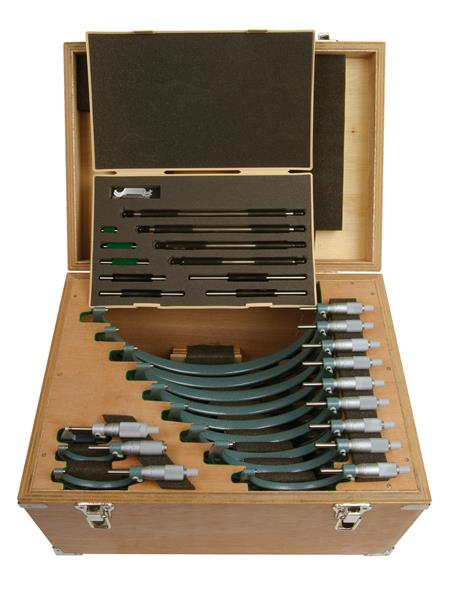

0-12 Inch, .0001 Inch Mechanical Outside Micrometer Set, Hammertone Baked Enamel, 12 gages, with 11 standards

  • Item Code: 103-908-40
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Supplied in a fitted plastic case.
    • Comes with 11 Micrometer Standards

Tech Specs

Back To Top
Accuracy ±.0001 In to ±.0002
Case Part Number 475586
Pieces Per Set 12
Clutch Varied
Contact Point Diameter 6.35mm
Finish Enamel
Spindle Lock Y
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 12 In
Range 0 - 12 In
Resolution or Graduation .0001 In
Spindle Face Flat
Contact Point Flatness .000024 In
Individual or Set Set
Thimble Diameter Measurement 18mm
Mechanical or Digital Mechanical
Case Material Wooden Case
Brand Mitutoyo
Parallelism [.00008+.00004(L/4)]In
Primary (Outside Diameter) Contact Point Material Carbide
