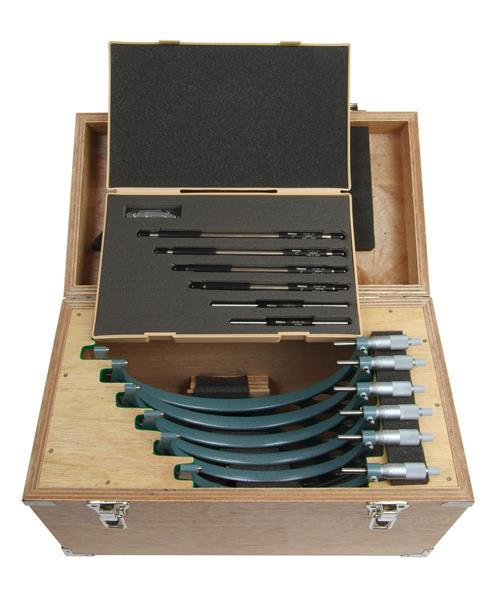

6-12 Inch, .0001 Inch Mechanical Outside Micrometer Set, Hammertone Baked Enamel, 6 gages, with 6 standards

  • Item Code: 103-909
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Range 6 - 12 In
Case Material Wooden Case
Pieces Per Set 6
Resolution or Graduation .0001 In
Spindle Face Flat
Accuracy ±.0001 In to ±.00015
Case Part Number 475585
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 6 In
Primary Measuring Range Upper - Inch 12 In
Contact Point Diameter 6.35mm
Spindle Lock Y
Thimble Diameter Measurement 18mm
Clutch Varied
Contact Point Flatness .000024 In
Finish Enamel
Individual or Set Set
Brand Mitutoyo
Mechanical or Digital Mechanical
Parallelism [.00008+.00004(L/4)]In
