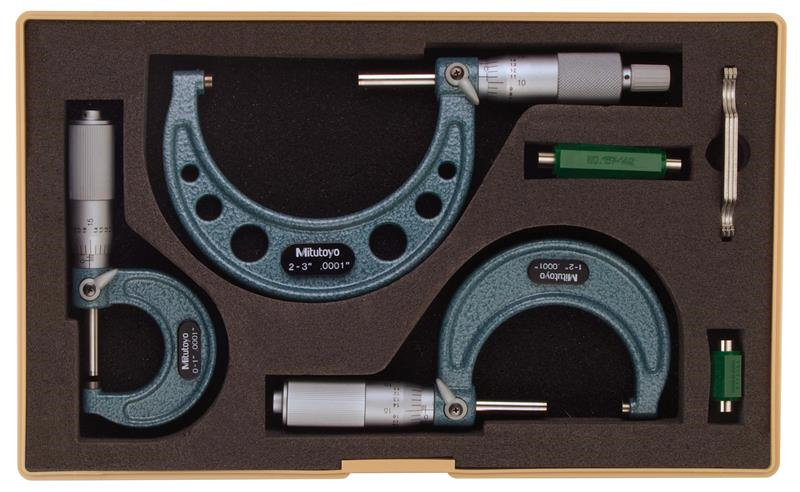

0-3 Inch, .0001 Inch Mechanical Outside Micrometer Set, Hammertone Baked Enamel, 3 gages, with 2 standards

  • Item Code: 103-922
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Supplied in a fitted plastic case.
    • Comes with 2 Micrometer Standards

Tech Specs

Back To Top
Case Part Number 475127
Parallelism [.00008+.00004(L/4)]In
Pieces Per Set 3
Contact Point Diameter 6.35mm
Primary Measuring Range Upper - Inch 3 In
Spindle Lock Y
Thimble Diameter Measurement 18mm
Clutch Varied
Contact Point Flatness .000024 In
Finish Enamel
Individual or Set Set
Accuracy ±.0001 In
Mechanical or Digital Mechanical
Case Material Plastic Case
Resolution or Graduation .0001 In
Spindle Face Flat
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Range 0 - 3 In
Brand Mitutoyo
