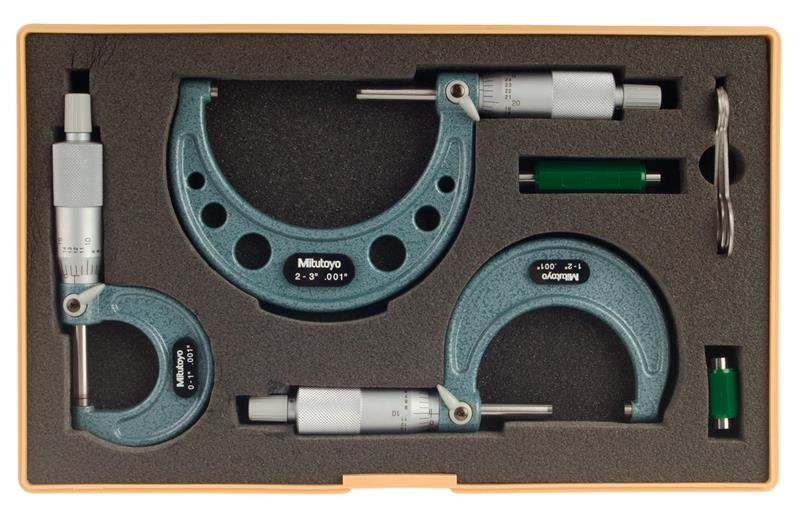

0-3 Inch, .001 Inch Mechanical Outside Micrometer Set, Hammertone Baked Enamel, 3 gages, with 2 standards

  • Item Code: 103-929
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Case Part Number 453025
Range 0 - 3 In
Pieces Per Set 3
Spindle Face Flat
Accuracy ±.0001 In to ±.00015
Resolution or Graduation .001 In
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Brand Mitutoyo
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Parallelism [.00008+.00004(L/4)]In
Thimble Diameter Measurement 18mm
Case Material Wooden Case
Clutch Varied
Finish Enamel
Individual or Set Set
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 3 In
Spindle Lock Y
