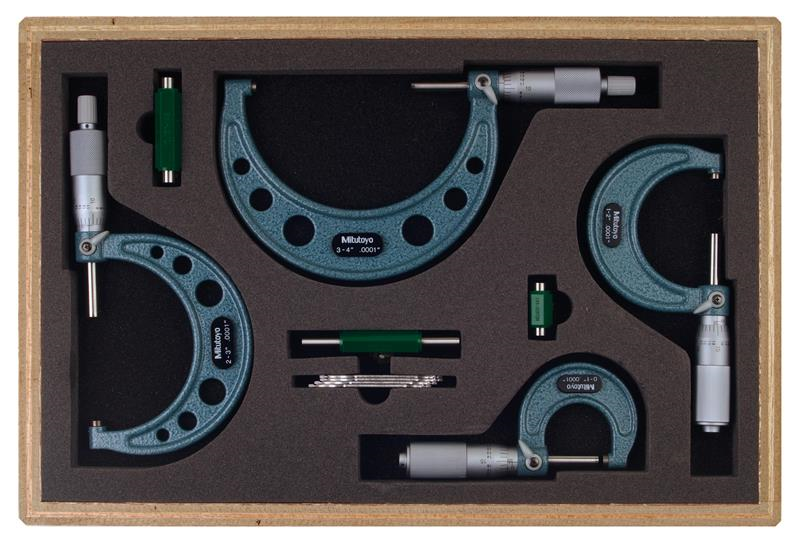

0-4 Inch, .001 Inch Mechanical Outside Micrometer Set, Hammertone Baked Enamel, 4 gages, with 3 standards

  • Item Code: 103-930
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Brand Mitutoyo
Case Part Number 475585
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Accuracy ±.0001 In to ±.00015
Clutch Varied
Finish Enamel
Pieces Per Set 4
Spindle Lock Y
Range 0 - 4 In
Case Material Wooden Case
Contact Point Flatness .000024 In
Parallelism [.00008+.00004(L/4)]In
Resolution or Graduation .001 In
Thimble Diameter Measurement 18mm
Individual or Set Set
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 4 In
Spindle Face Flat
Contact Point Diameter 6.35mm
