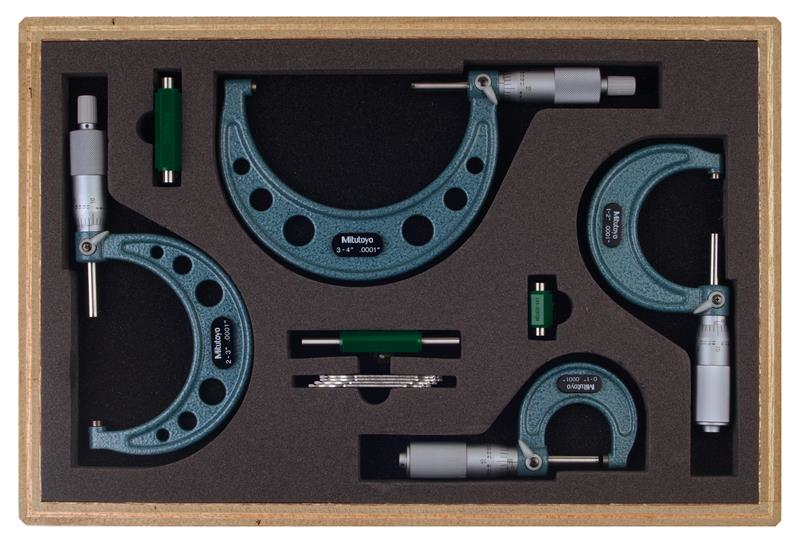

0-4 Inch, .0001 Inch Mechanical Outside Micrometer Set, Hammertone Baked Enamel, 4 gages, with 3 standards

  • Item Code: 103-931
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Hammertone, baked enamel-finished-frame.
    • Ratchet Stop for exact repetitive readings.

Tech Specs

Back To Top
Case Part Number 475457
Accuracy ±.0001 In
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Resolution or Graduation .0001 In
Spindle Face Flat
Contact Point Diameter 6.35mm
Pieces Per Set 4
Spindle Lock Y
Thimble Diameter Measurement 18mm
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 4 In
Clutch Varied
Contact Point Flatness .000024 In
Individual or Set Set
Finish Enamel
Brand Mitutoyo
Parallelism [.00008+.00004(L/4)]In
Range 0 - 4 In
