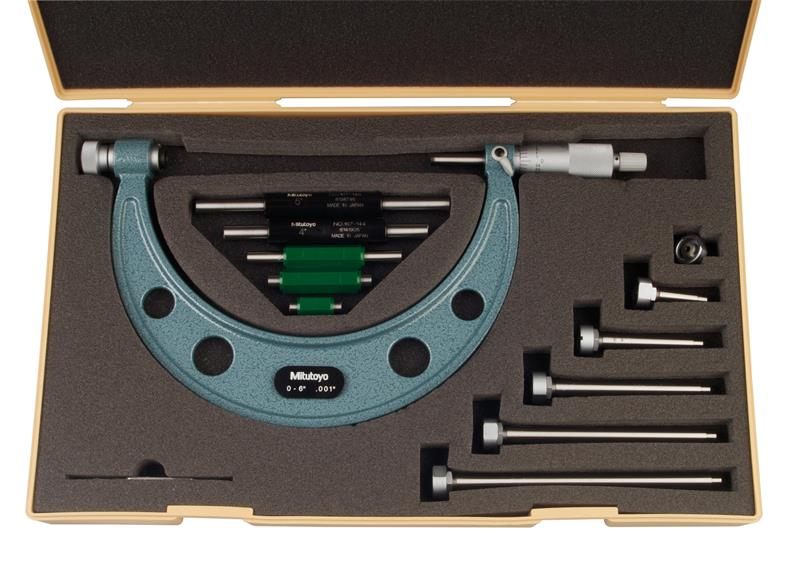

0-6 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, Carbide Face, Interchangeable Anvil Micrometer

  • Item Code: 104-137
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide measuring range.
    • With a ratchet stop for constant force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Case Part Number 475181
Pieces Per Set 6 anvils & 5 standards
Parallelism .00012 In
Accuracy ±[.00016 In + .00004 (L/3) In]
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Resolution or Graduation .001 In
Contact Point Flatness .000024 In
Thimble Diameter Measurement 18mm
Finish Enamel
Spindle Lock Y
Contact Point Diameter 6.35mm
Primary Measuring Range Upper - Inch 6 In
Range 0 - 6 In
Case Material Wooden Case
Clutch Ratchet Stop
Individual or Set Set
Primary Measuring Range Lower - Inch 0 In
Spindle Face Flat
