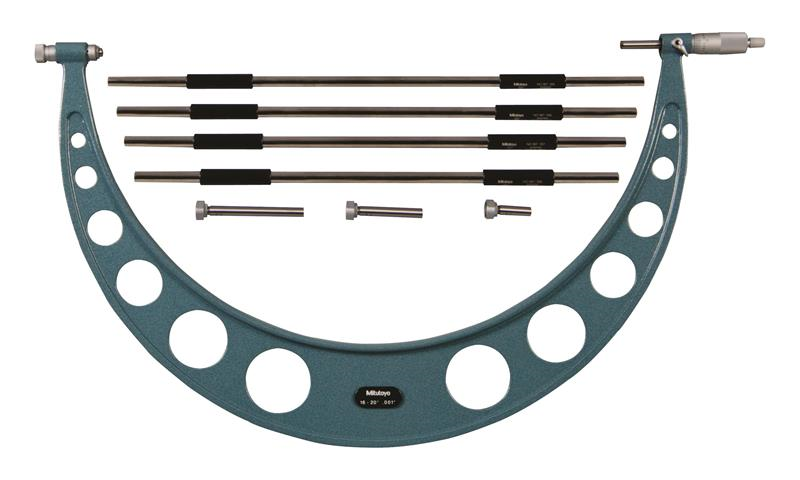

16-20 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, Carbide Face, Interchangeable Anvil Micrometer

  • Item Code: 104-153
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide measuring range.
    • With a ratchet stop for constant force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch 16 In
Range 16 - 20 In
Contact Point Diameter 6.35mm
Finish Enamel
Spindle Lock Y
Parallelism ±[.00008In+.00004(L/4)In]
Primary Measuring Range Upper - Inch 20 In
Resolution or Graduation .001 In
Accuracy ±[.00016 In + .00004 (L/3) In]
Mechanical or Digital Mechanical
Contact Point Flatness .000024 In
Individual or Set Set
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Pieces Per Set 4 anvils & 4 standards
Case Material Wooden Case
Case Part Number 470551
Clutch Ratchet Stop
Spindle Face Flat
Primary (Outside Diameter) Contact Point Material Carbide
