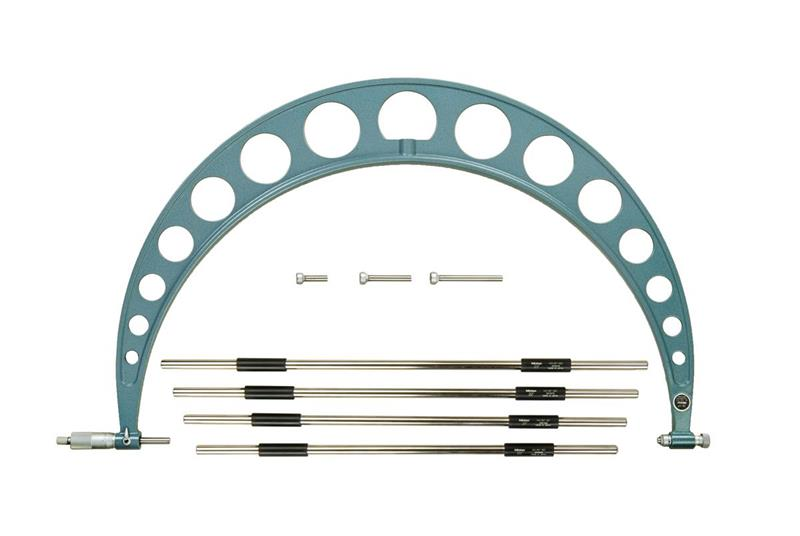

20-24 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, Carbide Face, Interchangeable Anvil Micrometer

  • Item Code: 104-154
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide measuring range.
    • With a ratchet stop for constant force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Pieces Per Set 4 anvils & 4 standards
Primary Measuring Range Lower - Inch 20 In
Range 20 - 24 In
Finish Enamel
Spindle Lock Y
Parallelism ±[.00008In+.00004(L/4)In]
Primary Measuring Range Upper - Inch 24 In
Thimble Diameter Measurement 18mm
Resolution or Graduation .001 In
Spindle Face Flat
Case Material Wooden Case
Individual or Set Set
Brand Mitutoyo
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Accuracy ±[.00016 In + .00004 (L/3) In]
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Case Part Number 470551
Clutch Ratchet Stop
