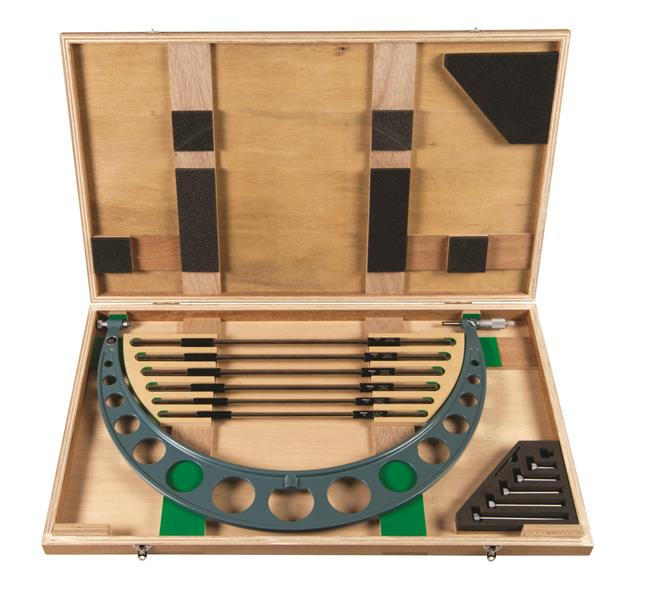

18-24 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, Carbide Face, Interchangeable Anvil Micrometer

  • Item Code: 104-202
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide measuring range.
    • With a ratchet stop for constant force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch 6 In
Range 18 - 24 In
Case Material Wooden Case
Case Part Number 475510
Clutch Ratchet Stop
Accuracy ±[.00016 In + .00004 (L/3) In]
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Resolution or Graduation .001 In
Spindle Face Flat
Brand Mitutoyo
Finish Enamel
Primary Measuring Range Upper - Inch 12 In
Individual or Set Set
Parallelism ±[.00008In+.00004(L/4)In]
Pieces Per Set 6 anvils & 6 standards
Thimble Diameter Measurement 18mm
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Spindle Lock Y
