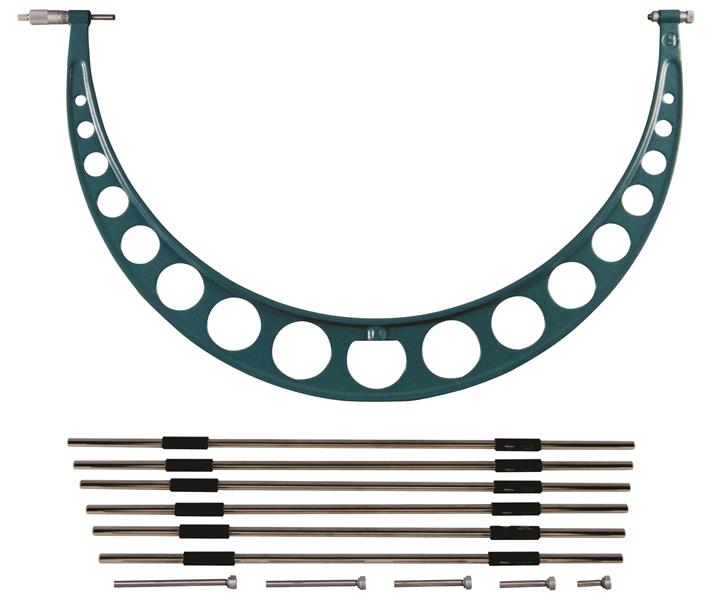

24-30 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, Carbide Face, Interchangeable Anvil Micrometer

  • Item Code: 104-203
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide measuring range.
    • With a ratchet stop for constant force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch 24 In
Primary Measuring Range Upper - Inch 30 In
Range 24 - 30 In
Case Material Wooden Case
Case Part Number 475510
Clutch Ratchet Stop
Accuracy ±[.00016 In + .00004 (L/3) In]
Contact Point Diameter 6.35mm
Contact Point Flatness .000024 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Individual or Set Set
Thimble Diameter Measurement 18mm
Parallelism ±[.00008In+.00004(L/4)In]
Pieces Per Set 6 anvils & 6 standards
Resolution or Graduation .001 In
Spindle Face Flat
Spindle Lock Y
Finish Enamel
