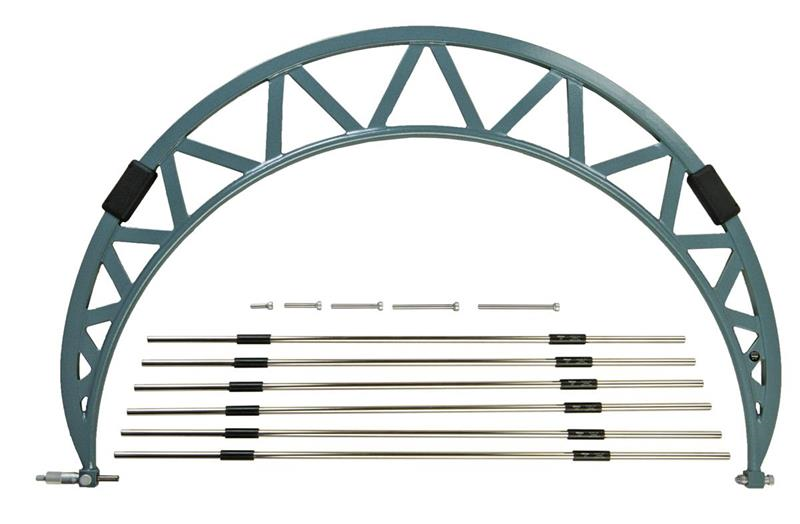

36-42 Inch, .001 Inch Interchangeable Anvil Mechanical Outside Micrometer, Ratchet Stop, 6 anvils, with 6 Standards

  • Item Code: 104-205-MITUTOYO
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide measuring range.
    • With a ratchet stop for constant force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Case Part Number 475510
Primary Measuring Range Lower - Inch 36 In
Primary Measuring Range Upper - Inch 42 In
Range 36 - 42 In
Accuracy ±[.00016 In + .00004 (L/3) In]
Resolution or Graduation .001 In
Contact Point Diameter 6.35mm
Case Material Wooden Case
Individual or Set Set
Spindle Lock Y
Spindle Face Flat
Brand Mitutoyo
Mechanical or Digital Mechanical
Parallelism ±[.00008In+.00004(L/4)In]
Pieces Per Set 6 anvils & 6 standards
Thimble Diameter Measurement 18mm
Finish Enamel
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Clutch Ratchet Stop
