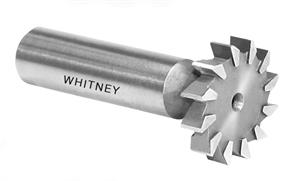

1-1/2 in. x 3/8 in. Uncoated HSS Deep Slotting Cutter With Side Teeth - 10 deg. Rake For Non-Ferrous Material
- Item Code: 10677
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Deep Slotting Cutters With Side Cutting Teeth - High Speed Steel
Straight Tooth
Made in USA
Features
Back To Top- Hold Slot Width to Closer Tolerances
- Improved Finish On Sides
Tech Specs
Back To Top| UPC | 648672106776 |
|---|---|
| Metric Cutting Diameter | 38.10 mm |
| OD Tolerance | +0.015", +0.020" |
| Overall Length (Inch) | 2-3/8" |
| Shank Diameter | 1/2" |
| Brand | Whitney Tool |
| Shank Length | 2 |
| Number of Teeth | 10 |
| Fractional Cutting Diameter | 1-1/2" |
| Neck Diameter | 0.46875 |
| Width Tolerance | +0", -0.0005" |
| Cut Width | 3/8" |
| Material | High Speed Steel |
| Shank Type | Straight |
| Coating/Finish | None |
| Shank Diameter Tolerance | +0", -0.0005" |
| Style | 10 deg. Rake for NON-Ferrous Material |
| Tooth Configuration | Straight |
