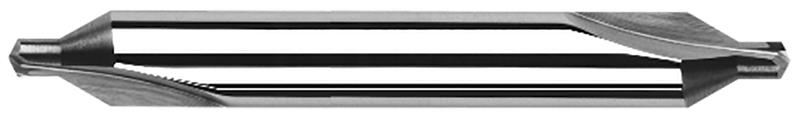

0.0150 in. (1/64) Drill Diameter x 60 Deg. Included 2 Flute Carbide #0000 Double Ended Drill and Countersink

  • Item Code: 11002-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Shank Diameter 0.1250" (1/8)
Drill Length 0.0150" (1/64)
Fractional Diameter 1/64"
Overall Length Fractional 1-1/2"
Brand Harvey Tool
Wire Diameter #0
Length of Cut 0.1150"
Number of Flutes 2
Decimal Diameter 0.0150"
Angle per Side 30
Coating/Finish None
Included Angle 60
Material Solid Carbide
Point Angle 118
Single/Double End Double End
Overall Length Decimal 1.5000"
