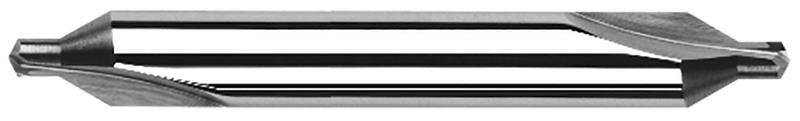

0.0312 in. (1/32) Drill Diameter x 60 Deg. Included 2 Flute Carbide #0 Double Ended Drill and Countersink

  • Item Code: 11020-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.1220"
Overall Length Decimal 1.5000"
Brand Harvey Tool
Fractional Diameter 1/32"
Wire Diameter #0
Single/Double End Double End
Drill Length 0.0310" (1/32)
Overall Length Fractional 1-1/2"
Coating/Finish None
Number of Flutes 2
Angle per Side 30
Included Angle 60
Material Solid Carbide
Point Angle 118
Shank Diameter 0.1250" (1/8)
Decimal Diameter 0.0312"
