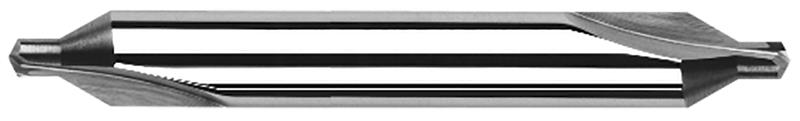

0.0469 in. (3/64) Drill Diameter x 60 Deg. Included 2 Flute Carbide #1 Double Ended Drill and Countersink

  • Item Code: 11030-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Length of Cut 0.1290"
Material Solid Carbide
Point Angle 118
Overall Length Decimal 1.5000"
Included Angle 60
Shank Diameter 0.1250" (1/8)
Coating/Finish None
Number of Flutes 2
Single/Double End Double End
Overall Length Fractional 1-1/2"
Brand Harvey Tool
Drill Length 0.0470" (3/64)
Fractional Diameter 3/64"
Wire Diameter #1
Decimal Diameter 0.0469"
