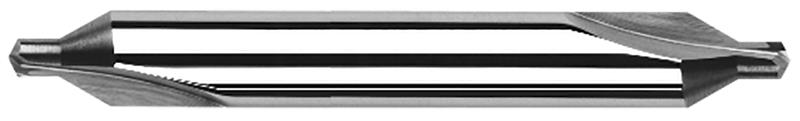

0.2188 in. (7/32) Drill Diameter x 60&deg Included 2 Flute Carbide #6 Doubled Ended Combined Drill & Countersink

  • Item Code: 11080-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60°, 82°, and 90° included angles - Plain Type
    • 2 Flutes
    • 118° included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.5290"
Single/Double End Double End
Drill Length 0.2180" (7/32)
Number of Flutes 2
Coating/Finish None
Decimal Diameter 0.2188"
Fractional Diameter 7/32"
Wire Diameter #6
Angle per Side 30
Included Angle 60
Material Solid Carbide
Point Angle 118
Brand Harvey Tool
Overall Length Decimal 3.0000"
Overall Length Fractional 3"
Shank Diameter 0.5000" (1/2)
