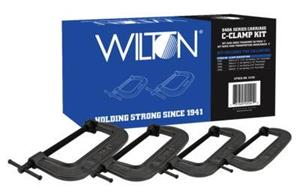

540A Series Carriage C-Clamp Kit

  • Item Code: 11115-JPW
  • Brand: Wilton
  • Unit Size: 1

Description

540A Series Carriage C-Clamps are ideal for light industrial, woodworking and repair applications. They feature a black oxide coating, oscillating head, and sliding cross pin handle. This kit includes four of our most popular sizes - 540A Series C-Clamp 0 - 2-1/2€ Opening Capacity, 540A Series C-Clamp 0 - 4€ Opening Capacity, 540A Series C-Clamp 0 - 6€ Opening Capacity and 540A Series C-Clamp 0 - 8€ Opening Capacity.

Features Tech Specs

Features

Back To Top
    • Frames made from high strength ductile iron castings
    • Sliding pin (vise type) handle, single acme thread rolled spindle and oscillating ball and socket tip
    • Wilton's heaviest-duty carriage clamp available
    • Lifetime Warranty

Tech Specs

Back To Top
Clamping Force (lbs) 1,110; 2,150; 2,450; 2,750
Opening Capacity Max (In.) 2-1/2, 4, 6, 8
Spindle Diameter (In.) 1/2, 5/8, 5/8, 3/4
Throat Depth (In.) 1-3/4, 2-1/16, 2-3/4, 3-1/4
UPC 731325455410
Brand Wilton
Gross Weight (lbs.) 13
Country of Origin CN
