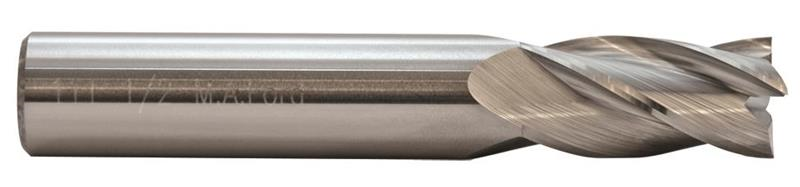

5/16 Inch Diameter Standard Length Solid Carbide TuffCut® General Purpose 4-Flute .015 Corner Radius End Mill
- Item Code: 11131251
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® GP - Series 111
Center Cutting-4 Flute-General Purpose
Designed for aggressive milling of most materials.
Tech Specs
Back To Top| Material | Solid Carbide |
|---|---|
| Material | Solid Carbide |
| Overall Length | 2-1/2 Inch |
| Overall Length | 2-1/2 Inch |
| Shank Diameter | 5/16 Inch |
| Shank Diameter | 5/16 Inch |
| Brand | MA Ford |
| Brand | MA Ford |
| Fractional Cutting Diameter | 5/16" |
| Fractional Cutting Diameter | 5/16" |
| Number of Flutes | 4 |
| Number of Flutes | 4 |
| Radius Decimal | 0.0150" |
| Radius Decimal | 0.0150" |
| Decimal Cutting Diameter | 0.3125" |
| Decimal Cutting Diameter | 0.3125" |
| Length of Cut | 13/16 Inch |
| Length of Cut | 13/16 Inch |
| Series | Tuff Cut® GP |
| Series | Tuff Cut® GP |
| Type | End Mill |
| Type | End Mill |
| Helix | 30° |
| Helix | 30° |
