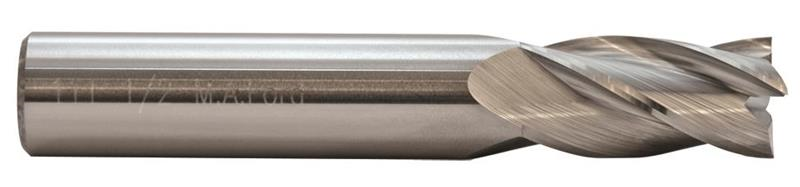

8mm Diameter Standard Length Solid Carbide TuffCut® General Purpose 4-Flute 1.00mm Corner Radius End Mill
- Item Code: 11131503
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® GP - Series 111
Center Cutting-4 Flute-General Purpose
Designed for aggressive milling of most materials.
Tech Specs
Back To Top| Shank Diameter | 8.0mm |
|---|---|
| Length of Cut | 20.0mm |
| Material | Solid Carbide |
| Overall Length | 64mm |
| Overall Length | 64mm |
| Brand | MA Ford |
| Brand | MA Ford |
| Radius Metric | 1.00 mm |
| Radius Metric | 1.00 mm |
| Decimal Cutting Diameter | 0.3150" |
| Decimal Cutting Diameter | 0.3150" |
| Helix | 30° |
| Helix | 30° |
| Metric Cutting Diameter | 8.00 mm |
| Metric Cutting Diameter | 8.00 mm |
| Number of Flutes | 4 |
| Number of Flutes | 4 |
| Series | Tuff Cut® GP |
| Series | Tuff Cut® GP |
| Type | End Mill |
| Type | End Mill |
