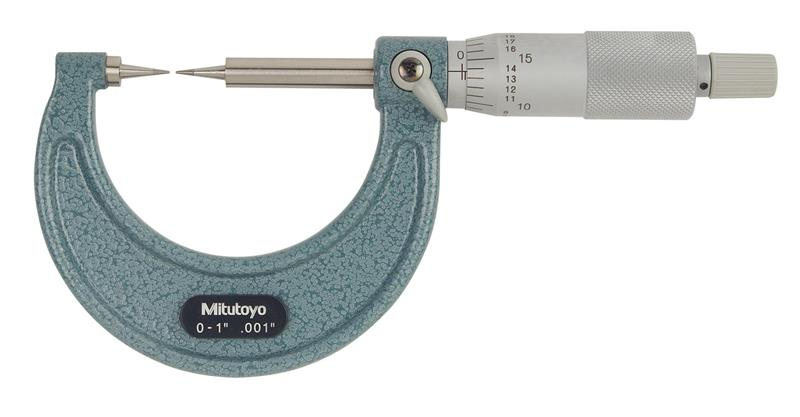

0-1 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, Carbide Face, 15 Degree, Point Micrometer

  • Item Code: 112-189
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Pointed spindle and anvil for measuring hard to reach dimensions.
    • 15 and 30 degree measuring points are available.
    • With a ratchet stop for constant force.

Tech Specs

Back To Top
Contact Point Diameter 6.35mm
Thimble Diameter Measurement 18mm
Case Part Number 475002
Mechanical or Digital Mechanical
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Accuracy ±.00015 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Case Material Plastic Case
Clutch Ratchet Stop
Spindle Face Point
Finish Enamel
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Brand Mitutoyo
Resolution or Graduation .001 In
Spindle Lock Y
