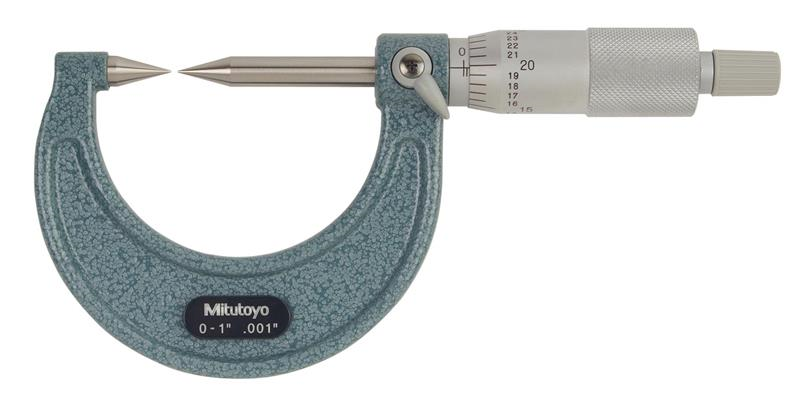

0-1 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, High Speed Steel Face, 30 Degree, Point Micrometer

  • Item Code: 112-225
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Pointed spindle and anvil for measuring hard to reach dimensions.
    • 15 and 30 degree measuring points are available.
    • With a ratchet stop for constant force.

Tech Specs

Back To Top
Brand Mitutoyo
Finish Enamel
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Spindle Lock Y
Case Part Number 475002
Clutch Ratchet Stop
Case Material Plastic Case
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Resolution or Graduation .001 In
Spindle Face Point
Accuracy ±.00015 In
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
Primary (Outside Diameter) Contact Point Material Hardened Steel
