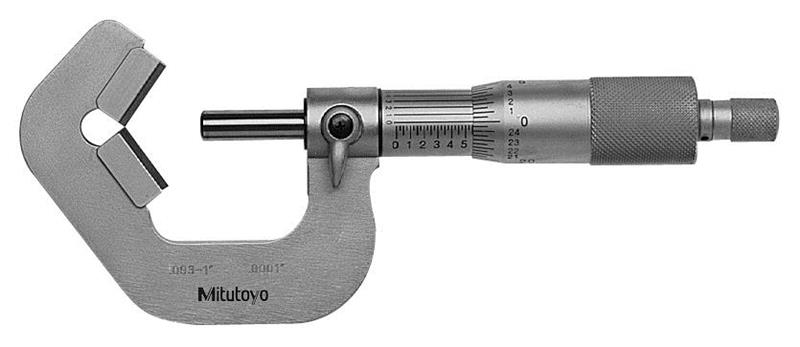

0.09-1 Inch, 0.0001 Inch, Mechanical V-Anvil Micrometer for 5 Flutes Cutting Head

  • Item Code: 114-135
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • With a ratchet stop for constant force.
    • Supplied with setting standard
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Case Part Number 453647
Range .09 - 1 In
Clutch Ratchet Stop
Contact Point Diameter 6.35mm
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Spindle Face Point
Thimble Diameter Measurement 18mm
Accuracy ±.0002 In
Case Material Plastic Case
Primary Measuring Range Lower - Inch .09 In
Resolution or Graduation .0001 In
Spindle Lock Y
Finish Enamel
