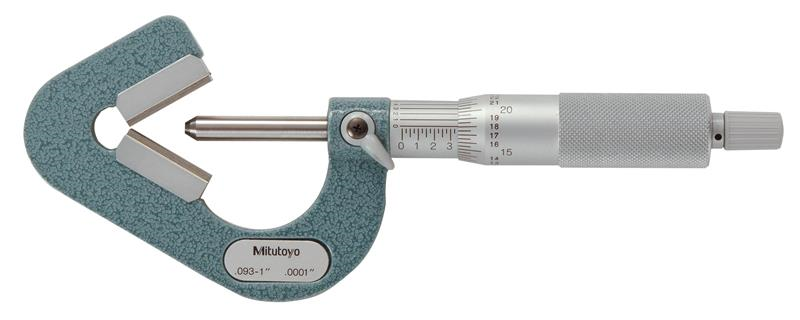

0.093-1 Inch Measuring Range, 0.0001 Graduation, Ratchet Thimble, Carbide Face, 3-Flute V-Anvil Micrometer

  • Item Code: 114-202
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Pointed spindle and anvil for measuring hard to reach dimensions.
    • 15 and 30 degree measuring points are available.
    • With a ratchet stop for constant force.

Tech Specs

Back To Top
Case Part Number 454645
Contact Point Flatness .000024 In/.00005 In
Primary Measuring Range Lower - Inch .09 In
Case Material Plastic Case
Individual or Set Individual
Spindle Face Point
Finish Enamel
Spindle Lock Y
Primary (Outside Diameter) Contact Point Material Carbide
Resolution or Graduation .0001 In
Clutch Ratchet Stop
Range .09 - 1 In
Primary Measuring Range Upper - Inch 1 In
Accuracy ±.0002 In
Brand Mitutoyo
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
