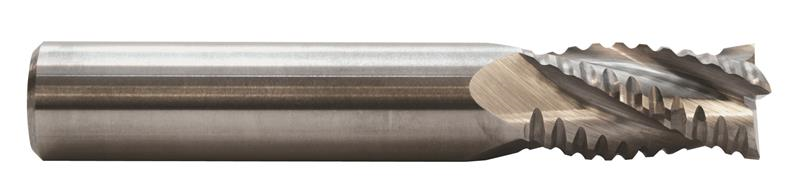

9/16 Inch Diameter 4-Flute, Solid Carbide Chipbreaker, Center Cutting Tuff Cut® GP End Mill
- Item Code: 11456250
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® GP -Series 114
Center Cutting
Chipbreaker end mill designed for aggressive milling of most materials.
Features
Back To Top- Allows high feed rates when roughing.
- Designed to minimize cutting forces, reduce or eliminate chatter and prolong tool life.
- Designed with tooth overlap to produce smooth part finish.
Tech Specs
Back To Top| Series | Tuff Cut® GP |
|---|---|
| Overall Length | 3-1/2 Inch |
| Shank Diameter | 9/16 Inch |
| Type | End Mill |
| Length of Cut | 1-1/8 Inch |
| Brand | MA Ford |
| Helix | 30° |
| Decimal Diameter | 0.5625" |
| Fractional Diameter | 9/16" |
| Material | Solid Carbide |
| Number of Flutes | 4 |
