2 hp, Vertical, 7,200 RPM, Front Exhaust, for 1-2 Inch W x 30 Inch L (25-51 mm x 762 mm) Belts, Dynabelter Extra Heavy-Duty Abrasive Belt Tool

  • Item Code: 11477
  • Brand: Dynabrade
  • Unit Size: 1

Description

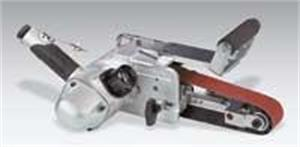

Dynabelter® Air-Powered Abrasive Belt Tool

For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.

Features Tech Specs

Features

Back To Top
    • Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
    • Extra Heavy-Duty, 2.0 hp model accepts 2" wide x 30" long abrasive belts. Includes pressure bar with top control handle. Includes 11870 Contact Arm Assembly.
    • 11871 Contact Arm with 4" dia. contact wheel is available for 2" wide x 60" long belts, providing a 20" workable reach. Optional 11891 Platen is available for 11871 Arm.
    • Ideal for use with 1/2" Dynaswivel, and 98273 Coupler/Plug Assembly.

Tech Specs

Back To Top
Belt Size Inches (mm) 1-2" (25-51) W x 30" (762) L
Exhaust Type Front Exhaust
Height Inches (mm) 7-3/4" (197)
hp (W) 2.0 (1,492)
Length Inches (mm) 21-1/2" (546)
Max. SFPM (SM/Min.) 4,700 (1,432)
Motor Free Speed (RPM) 7,200
Motor Style Vertical
Hose I.D. Size Inches (mm) 1/2" (13)
Air Inlet Thread 1/2" NPT
Brand Dynabrade
